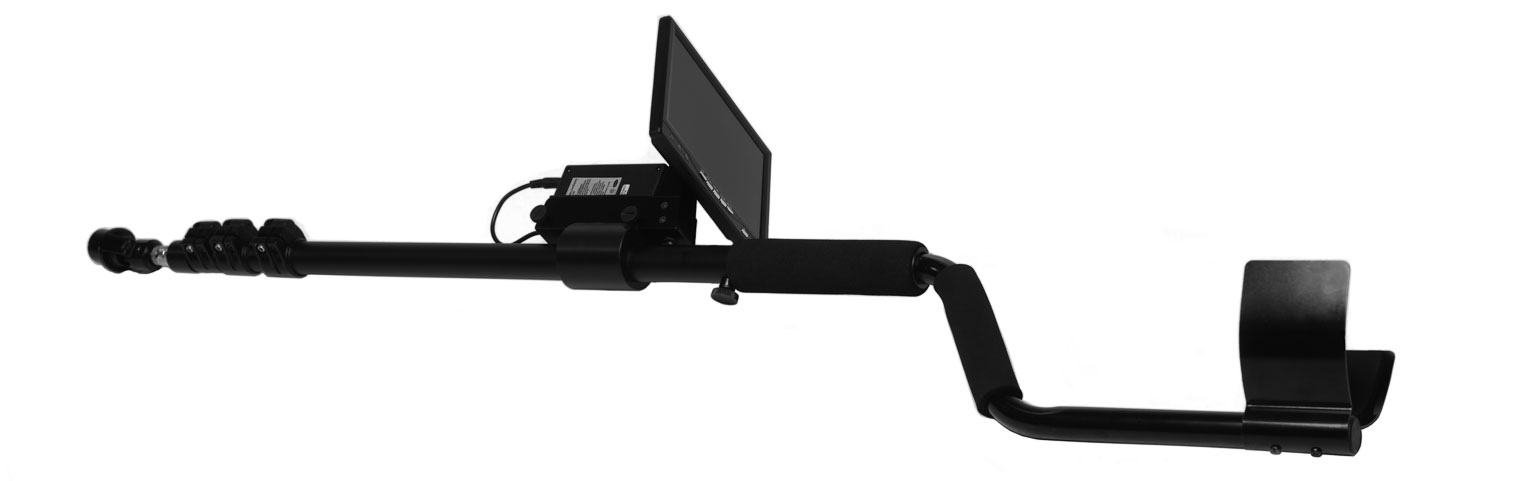

Video Inspection Kit VI-2200

previous arrowprevious arrow
next arrownext arrow
previous arrow
next arrow

Inspection video system VI-2200 is designed for security services, customs, police, and rescue services. The video system is used for visual inspection of inaccessible places, including in poor lighting conditions.

VI-2200 is equipped with video camera that is capable to work in good lighting conditions, as well as in complete darkness. In poor lighting conditions, the camera automatically switches to IR mode. IR LEDs are used t to increase effectiveness of inspection in dark areas.

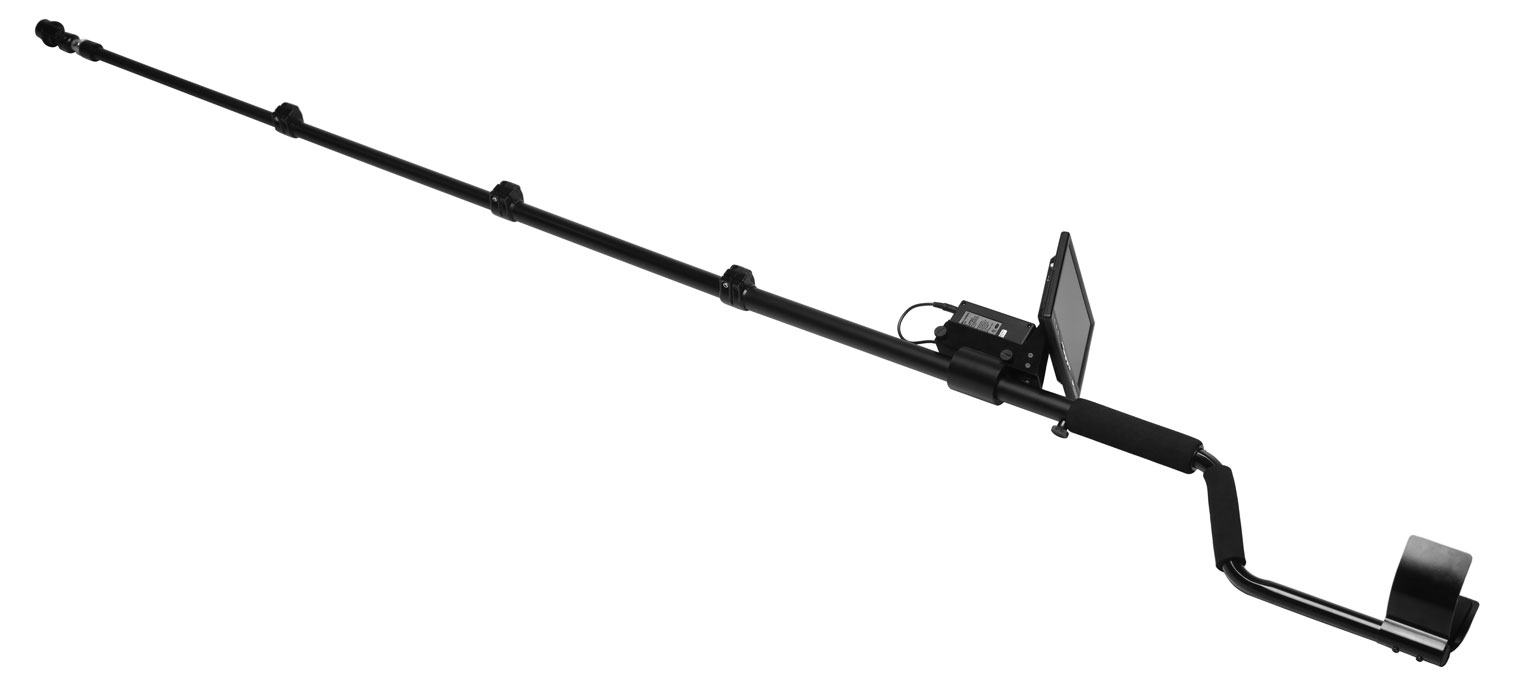

The telescopic pole of VI-2200 extends to over 2m.

A radio transmitter can be added to standard system, which makes possible to transmit image from the camera to remote monitor.

The VI-2200 design can be modified by request of a customer in order to function in specific working conditions.
Camera video image can be recorder to SD memory card. Record duration is limited only by memory card size (up to 32 Gb)

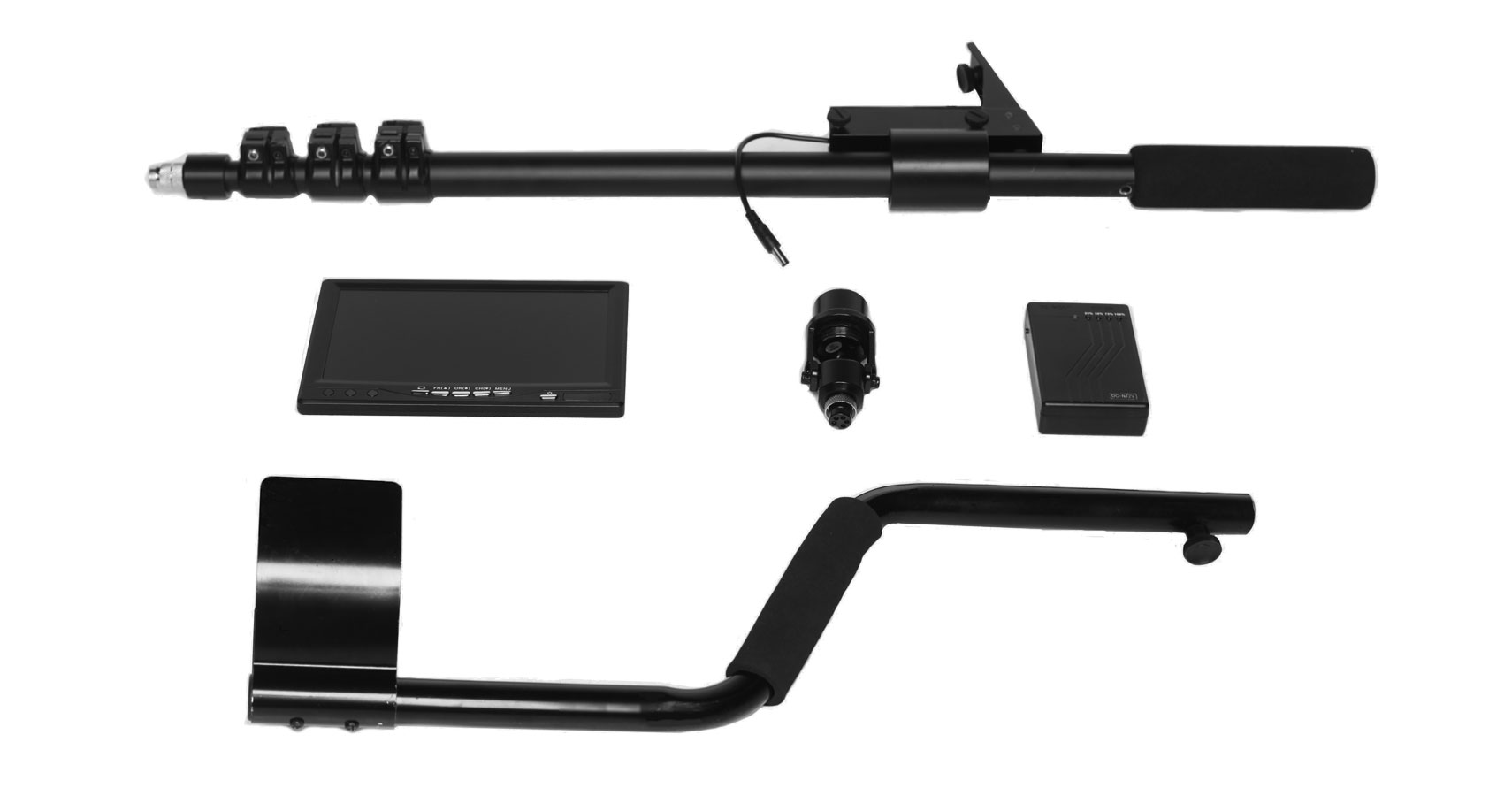

KIT INCLUDES:

  1. Telescopic bar (900mm-2200mm) -1 pcs
  2. Detachable handle -1 pcs
  3. Detachable videocamera -1 pcs
  4. LCD Monitor - 1 pcs
  5. Rechargeable battery - 1 pcs
  6. Protective bag

Technical Characteristics:
Contracted length 900mm
Extended length 2200mm
Weight 1.5kg
Protective bag weight (with all accessories) 3kg
Camera:
Sensor 1/4 sharp CCD
Resolution 420lines
Color / IR Yes
Illumination IR LEDs
Waterproof IP-67
Operation Temperature -20C°+75C°

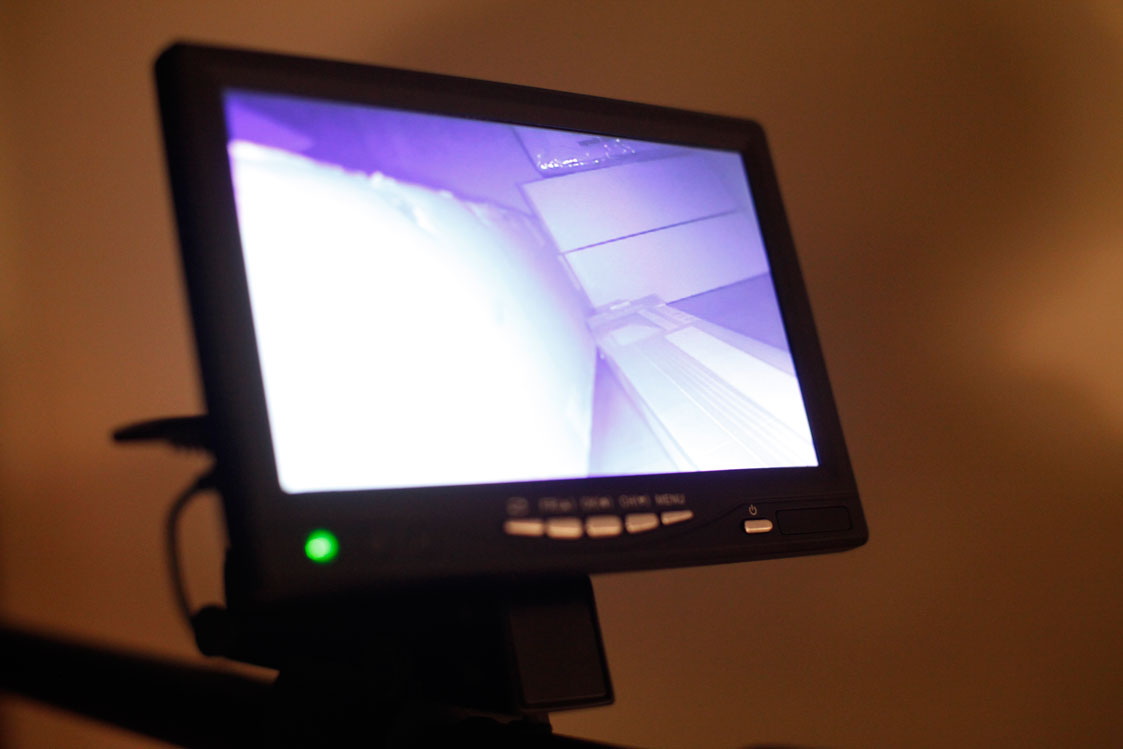

LCD Display:
Size 7 inch (800x480)
Wireless receiver 5.8GHz 32CH sensitivity -90dBm
USB 2.0
Auto Power Off Yes
Low voltage warning Yes
LCD Brightness 5 levels
OSD with Memory Info, Format, voltage etc.
Multi language support Yes
DVR:
Storage SD Card (support up to 32GB)
Loop record Yes
Date and time Stamp Yes
Battery:
Type Li-ion
Capacity 3800mAh
On/off power switch with LED Yes
Charge indicator Yes
Run-time 4 hours
